SDH8312
NON-ISOLATED AC TO DC CONTROLLER

    SDH8312 is AC-DC controller with built-in 650V MOSFET used for SMPS.

    SDH8312 integrates high-voltage circuit and self-power function for fast startup and low standby power dissipation. It features the frequency reduction function to optimize the conversion efficiency at light load; the soft startup function reduces the device stress to avoid transformer saturation.

    SDH8312 integrates various protections, including VDD undervoltage protection, open loop protection, output overload protection, output short-circuit protection, over temperature protection, etc. Meanwhile, if any protection occurs, the circuit will continue to restart automatically until the system recovers.


Main feature

  • Adjustable output voltage

  • High-voltage self-startup

  • Adaptive Frequency reduction

  • Soft startup

  • VDD undervoltage protection

  • FB open-loop protection

  • Lead edge blanking

  • Output overload protection

  • Short-circuit protection

  • Over temperature protection

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH8312TR SOP-8-225-1.27 SDH8312 Halogen free Tape & Reel
SDH8312 SOP-8-225-1.27 SDH8312 Halogen free Tube

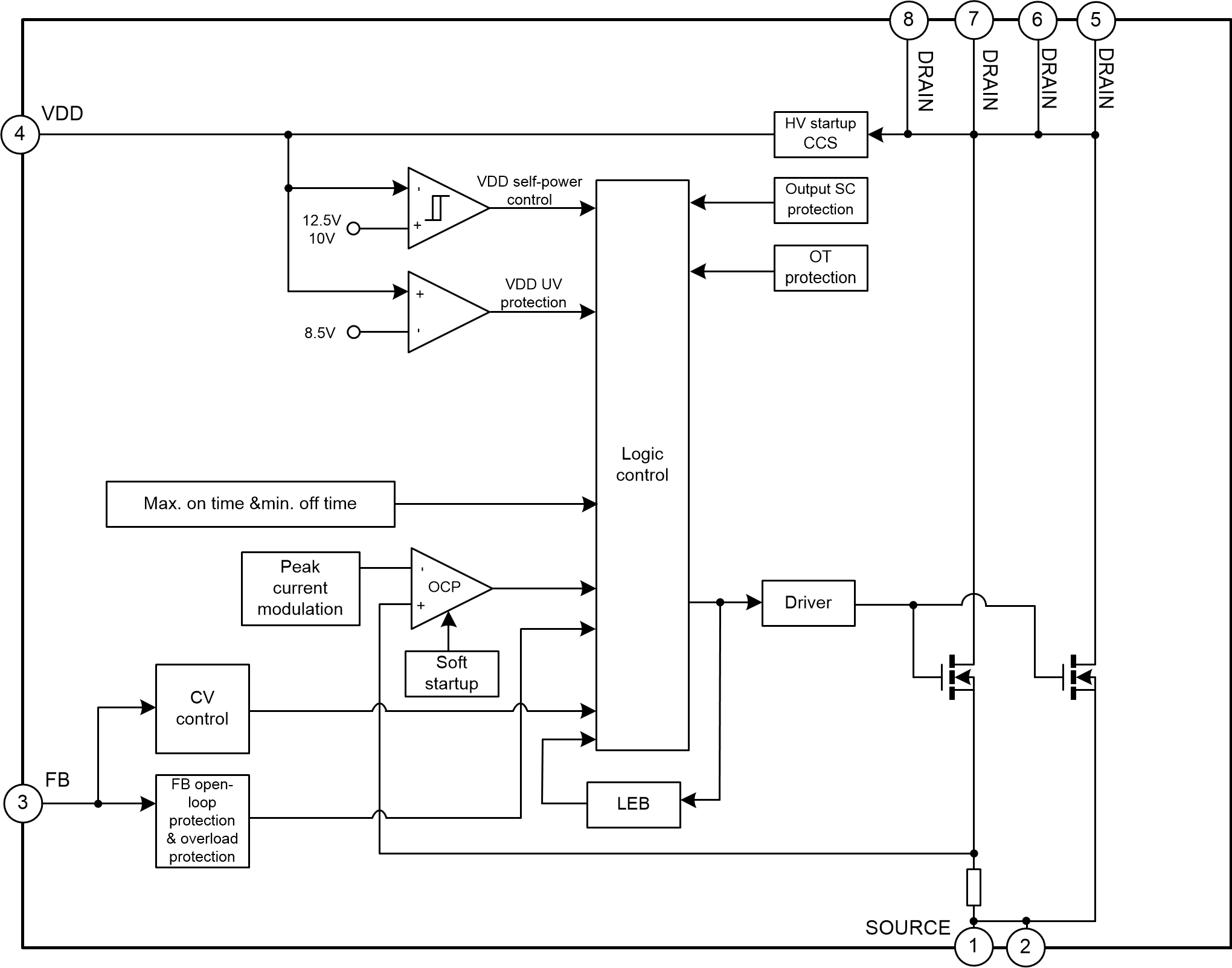

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SDH8312 0 1970-01-01 SDH8312 Brief Datasheet
