SDM50A60FA
600V/50A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SDM50A60FA is a 3-phase brushless DC motor driver with high integration and high reliability for high power inverter driving such as air condition, inverter, and industrial sewing machine. It has embedded six low-loss IGBT and three high-speed half-bridge gate drivers with high voltage.

    The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM50A60FA adopts high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature

  • Built-in six low-loss 600V/30A IGBT

  • Built-in high-voltage gate driver

  • Built-in under voltage, over temperature and over current protections

  • Built-in bootstrap diode

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminal for inverter current detection

  • Alarm signal: for low-side under voltage and short circuit protections

  • Package in DBC design with low thermal resistance

  • Insulation level: 2500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM50A60FA DIP-27H SDM50A60FA Halogen free Tube
Block Diagram

SDM50A60FA .png

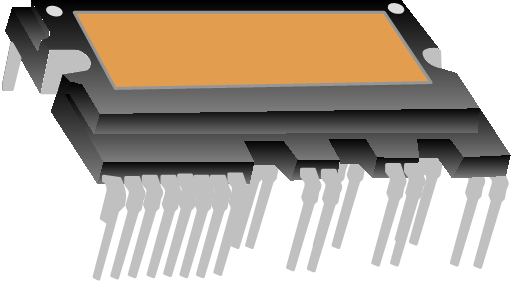

Packages
